How to Choose the Right Screen Printing Stretching Machine?

In the entire screen printing process, screen stretching and plate making are the starting point for all operations. The choice of screen stretching machine directly determines the uniformity and stability of screen tension, as well as the machine’s service life, and also directly affects the registration accuracy, image fidelity, and product yield in subsequent printing.

Many screen printing factories focus solely on price when purchasing equipment, neglecting their own product specifications and production precision requirements. This often results in screen stretching machines that produce uneven tension, are prone to slippage, and cannot accommodate different-sized frames, leading to significant waste of mesh, scrapped screens, and misregistration issues. Therefore, selecting a screen stretching machine in a scientific, reasonable, and precise manner is the crucial first step for screen printing factories to ensure stable production, improve quality, and reduce costs.

1. Determine the Device's Supported Paper Size

The primary criterion for selecting a screen-stretching machine is the equipment’s effective working area. This serves as the foundation for model selection and is also the most easily overlooked key factor. Many buyers fall into the misconception that they should purchase a screen-stretching machine that matches the exact dimensions of their screen frame. In reality, the working dimensions of the screen-stretching machine must exceed the maximum external dimensions of the screen frame, with sufficient clearance left around the edges for the clamping fixtures.

For example, if you commonly uses 1000 × 1200 mm screen frames, the corresponding screen stretching machine must have an effective working area of at least 1250 × 1400 mm to ensure that the clamps can fully grip the edges of the mesh, preventing issues such as insufficient clamping, localized gaps, or uneven force distribution. If the machine’s stroke is too short, the clamps will only be able to grip a small portion of the mesh, causing the tension to be distributed unevenly and resulting in inconsistent force on all four sides during stretching. This makes it highly likely that quality issues such as pattern distortion, misalignment, and localized blurring will occur during subsequent printing.

Additionally, when selecting a machine, it is important to consider production with smaller mesh frames as well. Ensure that the clamp spacing is freely adjustable so that the machine can accommodate both large and small screens, thereby avoiding a machine with limited functionality and low utilization rates.

2. Selecting the Appropriate Device Driver Type

Currently, screen stretching machines on the market are primarily divided into three drive types: manual mechanical, pneumatic, and hydraulic. Different models are suited for entirely different production scenarios, so companies need to make reasonable choices based on order precision, production volume, and budget.

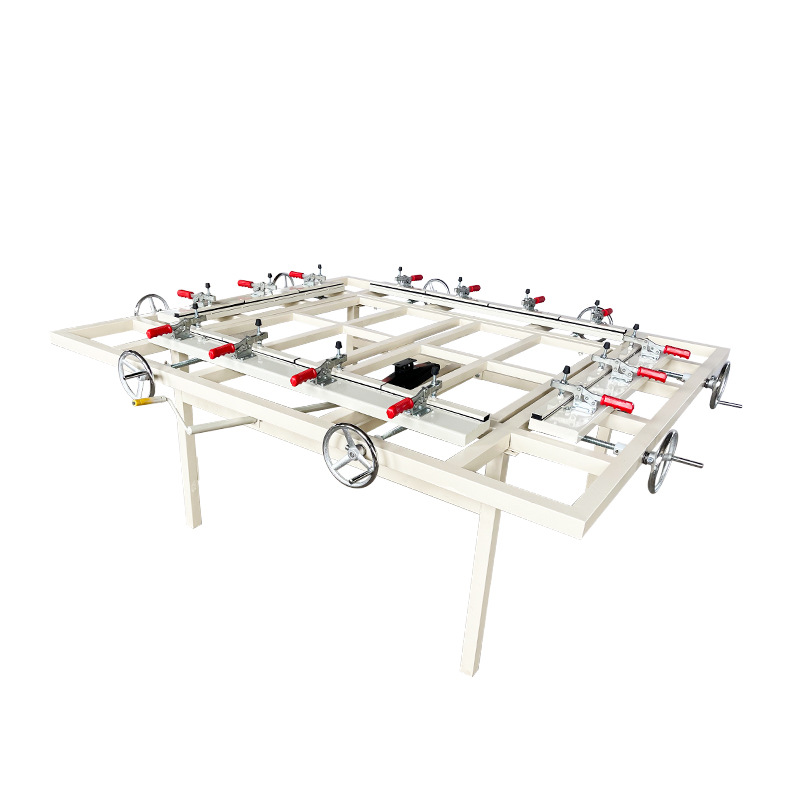

Manual screen stretching machines feature a simple structure and are inexpensive. They rely on manual screw-driven tension to stretch the mesh, making them suitable for small workshops, prototyping, and small-batch single-color printing. However, their drawbacks are significant: manual force application is inconsistent, tension cannot be evenly distributed across all four corners, and they are unable to produce high-tension, high-precision screens. As a result, they are completely unsuitable for multicolor registration, fine halftones, or high-end product printing.​

Pneumatic screen stretching machines are currently the mainstream choice for small and medium-sized screen printing factories. Driven by air cylinders and equipped with independent pressure-regulating valves, they allow for individual tension adjustment on all four sides. When used in conjunction with a tension gauge, they can precisely control screen tension values, providing uniform tension, effortless operation, and high efficiency. Suitable for both prototyping and mass production, they are compatible with the vast majority of conventional screen-printed products, including fabrics, films, signs, stationery, and glass, offering the best value for money and the highest practicality.​

Hydraulic screen tensioners deliver high tension and exceptional stability, making them suitable for extra-large screen frames, high-mesh-count precision screens, and high-end precision printing. However, these machines are expensive, have high maintenance costs, and are complex to operate. They are generally suited for large, high-end factories; ordinary small and medium-sized enterprises should not blindly purchase top-of-the-line hydraulic models.

3. Focus on Fixture Design

The clamps are the core components of a screen printing machine; they directly determine whether the mesh slips, whether tension is maintained, and whether the screen is durable. Poor-quality clamps have smooth surfaces and insufficient gripping force, causing pressure to slowly leak and tension to decay after the mesh is stretched, which results in the newly made screen deforming and becoming unusable within a short period of time.​

High-quality screen stretching machines use clamps with high-density serrations that provide a tight grip and distribute force evenly, preventing damage to the mesh, eliminating slippage, and maintaining consistent tension. Additionally, premium models support independent micro-adjustment of tension on all four sides. Since the mesh itself has differences in tension between the warp and weft directions, only independent tension adjustment on all four sides can ensure the tension across the entire screen is standardized, guaranteeing flat printing and precise registration. When purchasing equipment, be sure to prioritize models that offer independent tension adjustment, reinforced clamps, and precision-toothed mechanisms. Do not opt for simple, synchronous screen stretching equipment simply because of its lower price.

4. Aligned with the Product's Positioning

Equipment selection must align with the company’s product positioning and be tailored to specific needs—avoiding both under-specification and over-specification. If a factory primarily handles standard single-color printing and simple text and graphics with low precision requirements, an economical pneumatic screen printing machine can be selected to meet basic production needs. If the factory specializes in high-end products such as multicolor registration printing, halftone printing, membrane switches, lenses, and precision logos—which demand extremely high consistency and stability in tension—it must utilize high-quality machines capable of precise pressure adjustment and stable pressure maintenance. Additionally, standardized operations using a tension meter must be implemented to eliminate the crude production model that relies on manual feel to judge tension, thereby reducing scrap rates at the source.

5. Comprehensive Consideration of Operational and Maintenance Costs

Net-weaving machines are heavy-duty equipment; before purchasing, you must confirm that there is sufficient space in the factory to accommodate the machine and ensure adequate room for operation, ventilation, and maintenance. Pneumatic models require an air compressor; when selecting a model, be sure to factor in the cost of this auxiliary equipment. At the same time, avoid choosing a model based solely on low price. Low-end equipment often features jigs prone to wear, unstable cylinders, and high failure rates, resulting in extremely high hidden costs for future repairs and replacement parts—which ultimately makes them a poor investment. In contrast, reasonably priced mid-range pneumatic equipment offers superior stability, low failure rates, and excellent durability, providing far better long-term value than low-cost models.

There is no single “best” screen stretching machine; only the most suitable one exists. Companies must make a comprehensive assessment based on multiple factors—including their own screen frame dimensions, product precision requirements, production output, and space constraints—such as the machine’s working width, drive system, fixture design, precision specifications, and maintenance requirements. Selecting the right screen stretching machine can effectively improve plate-making quality, ensure consistent printing results, and reduce production costs. It lays a solid foundation for the entire screen printing production process and is a key factor in helping screen printing factories enhance quality and efficiency.
