Enyang: Since 1998

squeegee silk screen printing

50*9*4000mm 65A/75A Silk Screen printing squeegee rubber

Screen Printing Squeegee 03
Screen Printing Rubber blade is an all purpose polyurethane blade with good combined resistance to chemicals and abrasion. It was developed to withstand various applications in screen printing.Screen Printing Squeegee Products

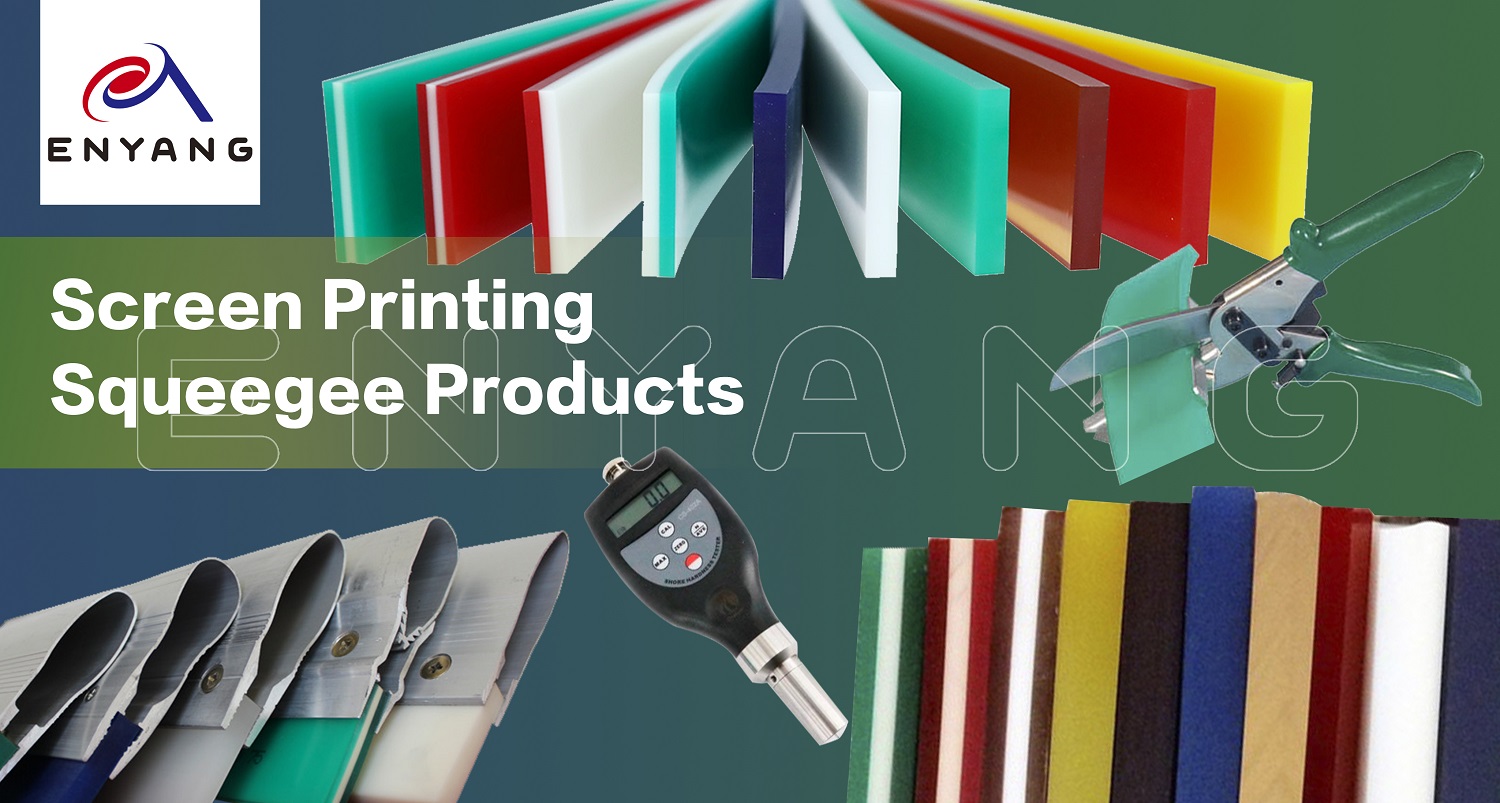

We supply full series squeegee products:
Squeegee rubber
Aluminum&wooden squeegee handle
Squeegee Rack
Squeegee hardness tester
Quantity:
Contact Now
add to cart

Product name: Squeegee silk screen printing

squeegee rubber
In screen printing the squeegee is intended to physically transfer the ink through the mesh opeanings that are not blocked by the emulsion. The force of mesh tension and off contact with the substrate, it releases and transfers.
Squeegee pressure should be directed at a uniform edge to shear the ink at minimal force. High pressure will bend the squeegee. Harder blades will overcome this, but accelerate screen wear. The correct hardness is application specific to maximise control, mimimise wear and produce high quality print.

Description of squeegee silk screen printing

S SERIES squeegee silkscreen
S Series is a good all round product, most suitable for garment and textile printing at a competitive price. Suitable for manual
and automatic printing, resistant to water-based inks and common solvents.
AAA SERIES squeegee silkscreen
AAA Series provide the optimal abrasion and chemical resistance,available in most profiles and dimensions Perfect for high-speed printing (glass printing, CD printing, credit card printing...)
UV SERIES squeegee silkscreen
UV series is abrasion resistance,high solvent resistance and deformation resistance.
Used for high solvent ink printing. Perfect for semi-auto&automatic printing:glass printing,CD printing,credit card
printing, and all industrial and electronic printing.
AAA+ SERIES squeegee silkscreen
AAA+ Series offers Very high Abrasion resistance. Performs well in the following applications: Bottle, Ceramic, Electronic / PCB, Industrial, Solar / PV and others.....
I
II
AAA+
TW
Dirmond
Tolerance
Thickness
3-20mm
9.5/10mm
9.5/10mm
Width
10-1000mm
9.5/10mm
9.5/10mm
Length
4000mm/3660mm/2000mm/1000mm
180-200mm
180-200mm
Hardness
55-85
55-85
65-95
55-90
65-90
+-3A


Features:

Good solvent-resistance and abrasion resistance.
Easy to grind, repeated use, cost saving.
In solvent, low expansion rate and less deformation.
Good elasticity, remaining on the screen of the pression in the process of printing, precision printing.

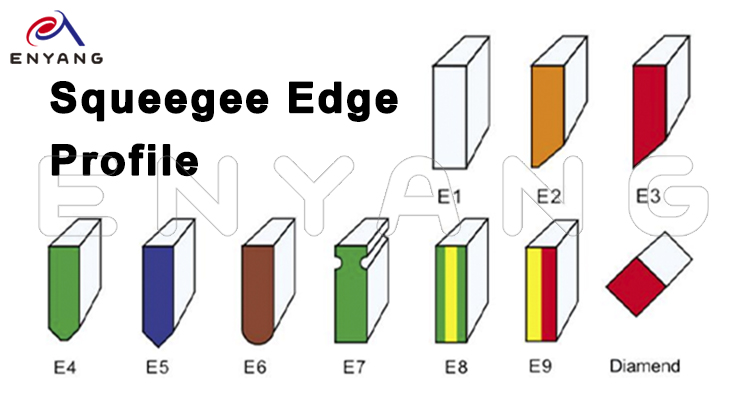

Screen printing squeegee edge
E1: Straight Square Edge
E2: Single Bevel+Flat tip
E3: Single Bevel
E4: Double Bevel+Flat tip
E5: Double Bevel (V shape)
E6: Bull Nose (round top)
E7: H shape
E8: Triple layer
E9: Double layer
Standard Size: Length:4000MM; Width:9mm-500mm; Thickness:2-20MM
Special sizes are available on request
Mark: Inkjet marking on blade quality, size and hardness shore A etc.

HOW TO CHOOSE A printing squeegee?

SURFACE:If the silk screen squeegee you have to print has an rough, non-planar surface, the most suitable squeegee durometer is between 60 and 70 sh.If the surface is smooth, a harder durometer squeegee, between 80 and 90, should be used.
MESH:If a high mesh count (mesh very thin) is being used, you need a harder squeegee (80 or 90 sh); if you are printing with glitter ink (which has large flakes of shiny, plastic material that have to pass through the mesh) you should use a softer squeegee.
INKS:The more aggressive inks, such as UV inks, cause more damage to the squeegee than a standard water based ink. The harder the material, the more solvent resistant the blade. Therefore, to eliminate swelling and chemical breakdown, use a harder durometer squeegee
INK DEPOSIT:A soft squeegee will deposit a thicker layer of ink than a harder squeegee.
AUTOMATIC OR MANUAL: hard durometer squeegees are normally used on high speed automatic machines (high degree of abrasion that occurs during a production run). Softer durometers squeegees are typically used for low-pressure low speed manual and semi-automatic presses.
For more details about printing squeegee, please contact us.

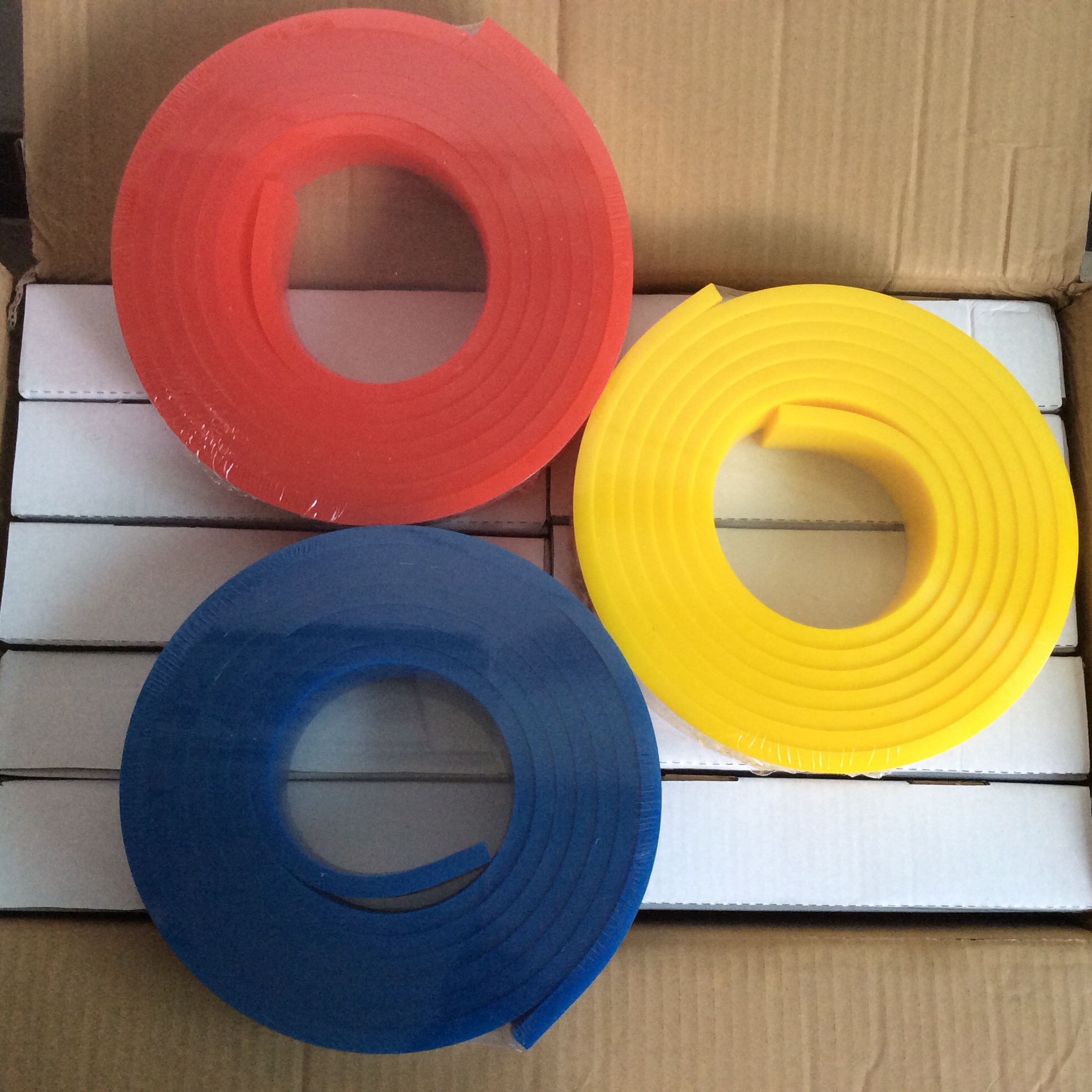

The maintenance storage of the squeegee
1. Shall be flat, don't places into rolls
2. Shall be open the whole roll 24 hours make sure the squeegee compelte stretch before using.3. Storage without removing the handle, the article blowing up, should be used when the stencil scraping the article can't contact with any object.4. When store the squeegee, away from the ink, because the squeegee can absorb moisture in the air and solvents.5. The squeegee with ink or handle can not stored overnight.6. Do not put the squeegee in the solvent for long time. Although the squeegee can be resistant to many kinds of solvent, but long time of soaking will make the squeegee deformation, loss of elasticity.7. Shall be immediately flush after using it to avoid ink dry on the squeegee. After cleaning the rubber handle there won't have any residual ink marks, otherwise when using the squeegee next time will have mark.
8. Use the soft cloth to clean the squeegee, along the direction of the squeegee to clean. Otherwise reverse cleaning will damage the squeegee edge.
Above all it is very important to select and use the squeegee. In the midst of our printing. Undertake choosing according to various substrates with different squeegee. It will have great effect for silk screen printing quality.

Why choose us?

Imported raw materials, imported equipment. With superior solvent resistance, abrasion resistance, stability, especially for the electronics industry, suitable for all areas of high-grade printing.
Three layer scraper has triple hardness, including a hard part between (90 degrees) make the sword scraping ink increase strong sex, helps to keep the good scraping ink angle, to reduce the amount of ink attached, soft part(60 degrees-70degrees) can reduce the sword scraping ink printing interface to the damage.

Packing & Delivery:

1.Samples orders usually within 3 days shipped by Courier (DHL, TNT, FEDEX, UPS, EMS and so on)
2.Small quantity orders usually within 3-7 days shipped by air or by sea.
3.Large quantity orders usually within 7-15 days shipped by sea.
The main export port: SHANGHAI
